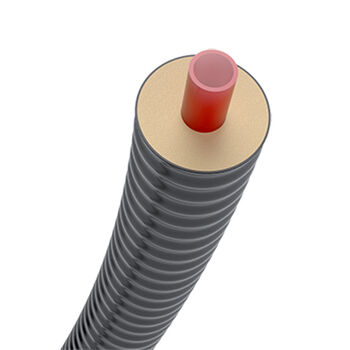

The patented CALPEX PUR-KING UNO with a PEX-a carrier pipe is a flexible, continuous and self-compensating low-temperature pipe system with the world’s best lambda value of 0.0199 W/m*K.
Operating temperature: Max. 95°C (fluctuating)
Operating pressure: PN 6
Dimensions: UNO DN 20–150
Carrier pipe: PEX-a
Insulation: Polyurethane (PUR)
Application: Local and district heating networks
We look forward to hearing from you.
>>> BIM data for CALPEX PUR-KING UNO <<<
| Type | Nominal diameter | PEX inner pipe | Min. bending radius | Max. ring length* | ||
| Jumbo | Maxi | |||||
| DN | Inch | mm | m | m | m | |
| CPX H 25/76 | 20 | 3/4 | 25 x 2.3 | 0.45 | 700 | 1000 |
| CPX H 25/91 PLUS | 20 | 3/4 | 25 x 2.3 | 0.65 | 450 | 715 |
| CPX H 32/76 | 25 | 1 | 32 x 2.9 | 0.50 | 807 | 1000 |
| CPX H 32/91 PLUS | 25 | 1 | 32 x 2.9 | 0.50 | 450 | 715 |
| CPX H 40/91 | 32 | 1 1/4 | 40 x 3.7 | 0.55 | 450 | 715 |
| CPX H 40/111 PLUS | 32 | 1 1/4 | 40 x 3.7 | 0.75 | 300 | 450 |
| CPX H 50/111 | 40 | 1 1/2 | 50 x 4.6 | 0.60 | 300 | 450 |
| CPX H 50/126 PLUS | 40 | 1 1/2 | 50 x 4.6 | 1.20 | 192 | 350 |
| CPX H 63/126 | 50 | 2 | 63 x 5.8 | 0.65 | 192 | 350 |
| CPX H 63/142 PLUS | 50 | 2 | 63 x 5.8 | 0.85 | 160 | 260 |
| CPX H 75/142 | 65 | 2 1/2 | 75 x 6.8 | 0.70 | 160 | 260 |
| CPX H 75/162 PLUS | 65 | 2 1/2 | 75 x 6.8 | 0.90 | 92 | 150 |
| CPX H 90/162 | 80 | 3 | 90 x 8.2 | 1.00 | 92 | 150 |
| CPX H 90/182 PLUS | 80 | 3 | 90 x 8.2 | 1.00 | 52 | 90 |
| CPX H 110/162 | 100 | 4 | 110 x 10.0 | 1.10 | 92 | 150 |
| CPX H 110/182 | 100 | 4 | 110 x 10.0 | 1.20 | 52 | 90 |
| CPX H 110/202 PLUS** | 100 | 4 | 110 x 10.0 | 1.40 | 46 | 80 |
| CPX H 125/182 | 125 | 5 | 125 x 11.4 | 1.30 | 52 | 90 |
| CPX H 125/202 PLUS** | 125 | 5 | 125 x 11.4 | 1.50 | 46 | 80 |
| CPX H 140/202 | 125 | 5 | 140 x 12.7 | 1.40 | 46 | 80 |
| CPX H 160/250 | 150 | 6 | 160 x 14.6 | - | 12 (Stangen) | 12 (Stangen) |
