CALPEX Sanitär UNO

CALPEX SANITARY UNO low-temperature pipe system

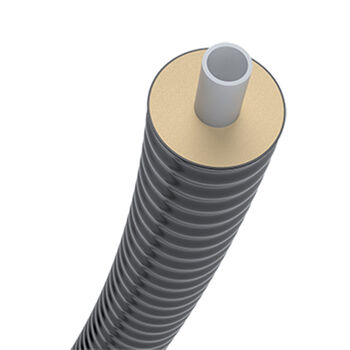

The patented CALPEX UNO with a PEX-a carrier pipe is a flexible, continuous and self-compensating sanitary pipe system.

Pipe with an inner pipe
Operating temperature: Max. 95°C (fluctuating)
Operating pressure: PN 10
Dimensions: DN 15–50
Carrier pipe: PEX-a
Insulation: Polyurethane (PUR)

Application: Service water and drinking water pipe

We look forward to hearing from you.



>>>> BIM data for CALPEX SANITARY UNO <<<



Type Nominal diameter PEX inner pipe Min. bending radius Max. ring length*
  Jumbo Maxi
  DN Inch mm m m m
CPX S 20/76 15 1/2 20 x 2.9 0.45 700 1000
CPX S 25/76 20 3/4 25 x 3.7 0.50 700 1000
CPX S 32/76 25 1 32 x 4.7 0.50 700 1000
CPX S 40/91 32 1 1/4 40 x 6.0 0.55 450 715
CPX S 50/111 40 1 1/2 50 x 6.9 0.60 300 450
CPX S 63/126 50 2 63 x 8.7 0.65 192 350
CPX S 32/111 HBK 25 1 32 x 4.4 0.6 300 450
CPX S 50/126 HBK 40 1 1/2 50 x 6.9 1.00 192 350
* Supply as section length, as coils and on drums possible. The delivered coil lenght may vary (+/- 5%)
