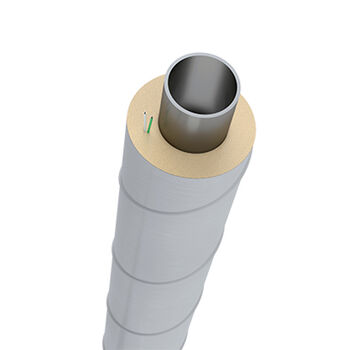

SPIRAMANT heating high-temperature pipe system

The SPIRAMANT is a thermally insulated high-temperature pipe system with a flame-retardant folded spiral steel casing.

Operating temperature: Up to max. 144°C
Operating pressure: PN 25
Dimensions: DN 20–600
Carrier pipe: Variable
Insulation: Polyurethane (PUR)


Application: Thermally insulated transportation of liquids as an overhead line or in a building

When a fire-classified pipe is required

Our pipes are available in dimensions DN 20 to DN 600. You can select the carrier pipes and the system of monitoring wires. The folded spiral sheet steel is galvanised using the Sendzimir process (Swiss flammability index: 6 – not flammable). The hard polyurethane foam is flame-retardant and corresponds to Swiss flammability index 5.1 and B1 as per DIN 4102.

We can quickly respond to meet your requirements with our modern production facilities.

Assembly

This product must be laid by certified technicians. With our trained assembly specialists or in collaboration with appropriately trained specialist companies, we perform all types of pipe laying work.

We look forward to hearing from you.
