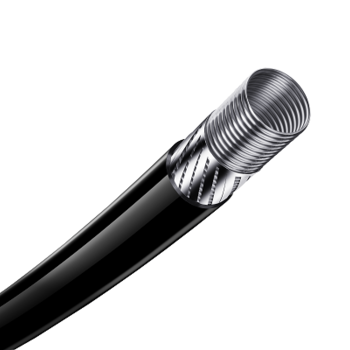

FLEXWELL-LPG is a flexible, continuous, single-walled and reinforced pipe system with protective PE casing providing external corrosion protection. It has been designed and certified especially for transporting liquefied petroleum gas (LPG) underground at filling stations and is suitable for the medium in both liquid and gas form.
Properties
Operating temperature: Up to max. -50°C
Operating pressure: PN 25
Dimensions: DN 20–50
Carrier pipe: Stainless steel
Applications
Liquid gas pipe, e.g. LPG
Gas and vapour phase
Pressure pipe
Product data
| Type | Diameter | Dimensions | Min. bending radius | Weight | |
| DN | d | D | |||
| mm | mm | m | kg/m | ||
| LPG 22/33 | 20 | 22 | 33 | 0.2 | 0,74 |
| LPG 30/40 | 25 | 30 | 40 | 0.2 | 0,94 |
| LPG 39/50 | 32 | 38,9 | 50 | 0.3 | 1,52 |
| LPG 48/61 | 40 | 48,5 | 61 | 0.4 | 1,94 |
| LPG 60/74 | 50 | 60 | 74 | 0.6 | 2,72 |
