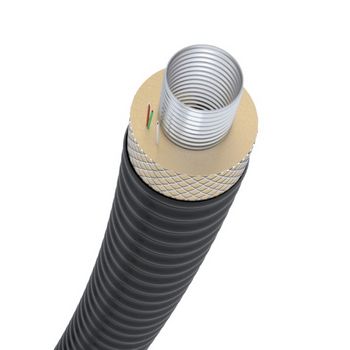

The CASAFLEX UNO with a corrugated stainless steel inner pipe is a thermally insulated, flexible and continuous pipe system for high temperatures and operating pressures.
Operating temperature: Up to 150°C fluctuating (max. 180°C temporarily)*
Operating pressure: 16/25 bar
Dimensions: UNO DN 20-50
Carrier pipe: Stainless steel
Insulation: Polyisocyanurate (PIR)
*During the guaranteed service life of 30 years, the maximum continuous operating temperature of 150 °C up to the peak temperature of 180 °C may be exceeded twice a year for a period of one hour. After this, the maximum continuous operating temperature of 150 °C must be adjusted again.
Application:
Building infeed and supply line in district and local heating networks.
| Type | Nominal diameter | Inner pipe | Outer casing | Min. bending radius* | |
| d x d1 x 1 | D | ||||
| DN | Inch | mm | mm | m | |
| CFL 22/91 | 20 | 3/4 | 25x22x0.3 | 91 | 0.8 |
| CFL 30/111 | 25 | 1 | 34x30x0.3 | 111 | 1.0 |
| CFL 39/126 | 32 | 1 1/4 | 44x39x0.4 | 126 | 1.2 |
| CFL 48/126 | 40 | 1 1/2 | 55x48x0.5 | 126 | 1.2 |
| CFL 60/142 | 50 | 2 | 66x60x0.5 | 142 | 1.3 |
